Specification
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B550 | |
| Form Factor | M-ATX Form Factor 9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
|
| Expansion Slots | ||
| PCI | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots |
|
| M.2 Socket | 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Memory | ||
| Type | Dual-channel memory architecture | |
| Slots | 4x DDR4 memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz Supports 2-Way AMD CrossFire Technology |
|
| Max Shared Memory | 16GB | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz | |
| Display Port (s) | 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz | |

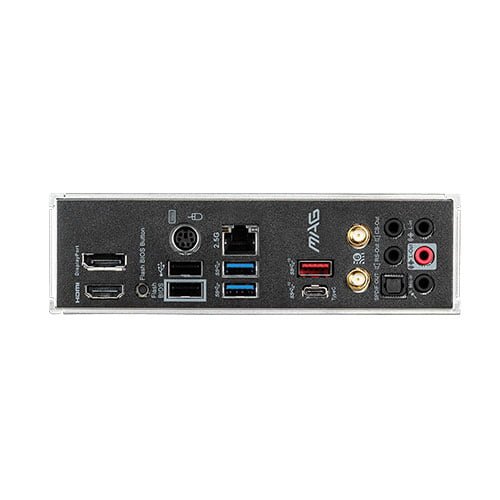

| USB (s) | AMD B550 Chipset: 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor: 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8125B 2.5Gbps LAN controller | |
| Supported Storage | AMD B550 Chipset
6x SATA 6Gb/s ports |
|
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1xTPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
| Others | ||
| Special Features | WIRELESS LAN & BLUETOOTH: Intel Wi-Fi 6 AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.1RAID AMD B550 ChipsetSupports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|

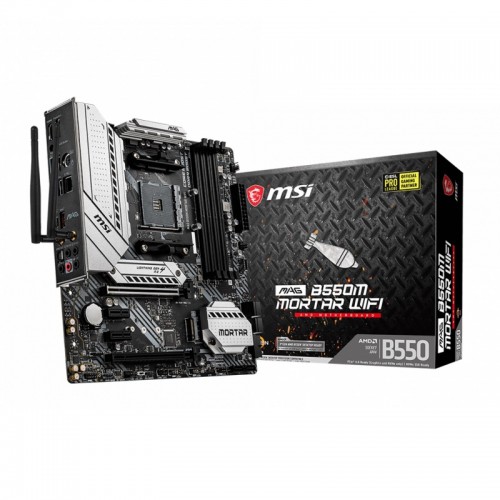

MSI MAG B550M Mortar WIFI AM4 AMD Micro-ATX Motherboard
The MSI MAG B550M Mortar WIFI Motherboard was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end CPUs run at full speed with MSI motherboards. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI MAG B550M Mortar WIFI Motherboard support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in a high signal density environment. Compared to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate it from several devices, and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with the same and harmonious traffic bandwidth in an efficient way. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency. The MSI MAG B550M Mortar WIFI Motherboard comes with 3 years of warranty.
