Specification
| Basic Information | ||
| Supported CPU | – Supports 8th Generation Intel® Core™ Processors (Socket 1151) | |
| Chipset | – Intel® H310 | |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment |
|
| Form Factor | – Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm – Solid Capacitor design |
|
| Expansion Slots | ||
| PCI | – 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) – 2 x PCI Express 2.0 x1 Slots |
|
| M.2 Socket | -1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s) | |
| Memory | ||
| Type | -Dual Channel DDR4 Memory Technology | |
| Slots | – 2 x DDR4 DIMM Slo | |
| Supported Memory | – Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory | |
| Maximum Memory | 32GB | |
| Graphics | ||
| Graphics | – HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) – Three graphics output options: D-Sub, DVI-D and HDMI** – DirectX 12 – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 30Hz – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) – Supports HDCP with DVI-D and HDMI Ports – Supports 4K Ultra HD (UHD) playback with HDMI Port |
|
| Connector & Ports | ||
| HDMI | -1 x HDMI Port | |
| USB (s) | – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
| LAN Port (s) | -1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Supported Storage | – 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug* – 1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s) |
|
| Audio | -1 x Front Panel Audio Connector -HD Audio Jacks: Line in / Front Speaker / Microphone |
|

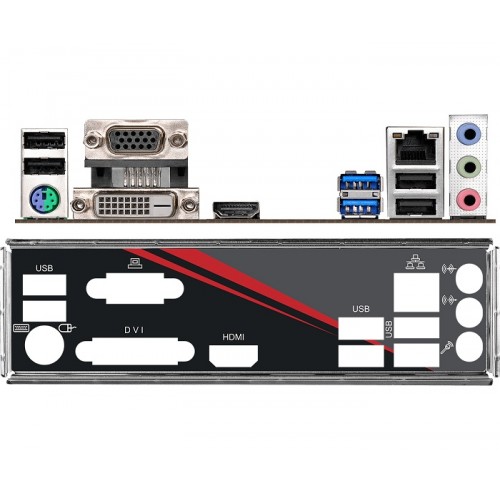

| Internal I/O Ports | – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |

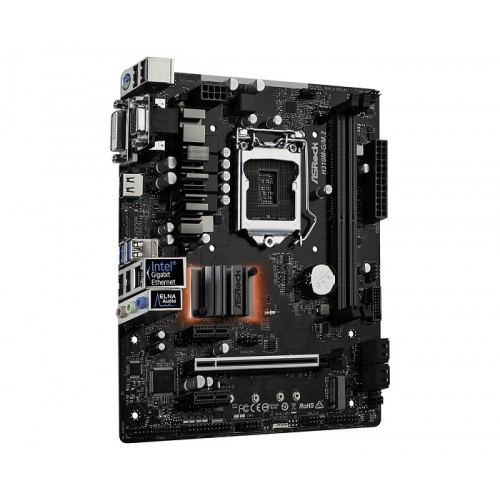

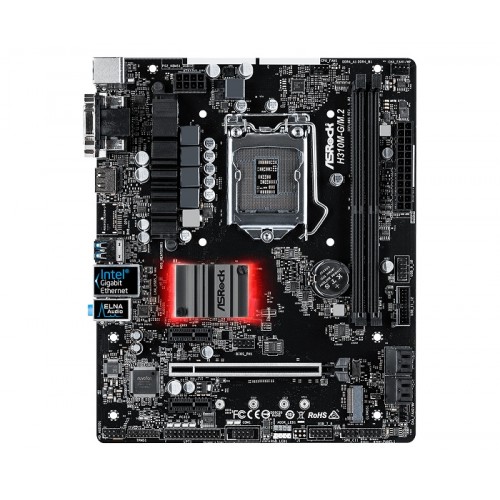

Supports 8th Generation Intel® Core™ Processors (Socket 1151) , Supports DDR4 2666 ,1 PCIe 3.0 x16, 2 PCIe 2.0 x1, AMD Quad CrossFireX™ , Graphics Output Options: HDMI, DVI-D, D-Sub , 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps, 4 SATA3, 1 M.2 (PCIe Gen2 x4 & SATA3), 4 USB 3.1 Gen1 (2 Front, 2 Rear),Intel® Gigabit LAN
